Cadence Virtuoso CMOS Analog Design Basics in TSMC 22nm: a simple op-amp design with a High Swing Cascode current mirror

Cadence Virtuoso CMOS Analog Design Basics in  TSMC 22nm: a simple op-amp design with a High Swing Cascode current mirror

In the previous blog post “Cadence Virtuoso CMOS Analog Design Basics in  TSMC 22nm: “Constant gm bias circuit” with start-up and reduced sensitivity
to changes in VDD” we needed to add an opamp.

A design of a simple opamp is very well explained by  Hafeez KT, in his youtube lecture available online and here is a basic topology:

But even the simplest opamp schematic would need a current mirror  ( NMOS transistors M5 and M8 ) provide necessary referent current Io .

In this blog post I  would like to explore  a High Swing Cascode current mirror a subject very well explained by prof. Nagendra Krishnapura  in his lectures
available online ( ee5320 2016 IIT Madras ).

For a “short channel” processes ( or other name is  a nanometer process ) such as TSMC 22nm , we should always use High Swing Cascode because
ID5 is very dependant on VDS5 .

E.g. For VDS1=VDD = 3.3 ,  a change between VGS1=VGS2=1.094V to 3.6V is causing change of ID1 between: 10uA to 10.55uA. Expected value
ID2=ID1 = 10uA is true only if VDS1=VDS2=VGS1=VGS2=1.094V.

Variation of ID1 with a variation of VDD=VDS1 is no surprise because it can be proven that output resistance of M1 ( the resistance “seen” to the drain of M2 transistor) is 1/gds2 .

=> for a change of a delta Vout=VDS1 =>IDS1 changes to IDS1 + delta VDS1*gds2

Since for NMOS transistor M2 in saturation gm is:

=> there are two solutions to the problem of the small output resistance:

• somehow  increase the output resistance  or
• decrease gm ( or decrease W, or increase L or increase ID2=ID1=Io=10uA )

Decreasing gm is not really an option because our referent current is 10uA and we don’t want to “burn” more current/power. On the other hand  W/L of transistors M1 and M2 is
W/L=1u/2u, a reasonable small W and a reasonable big value of L.

=> The solution is an increase of output resistance.

One of the solutions is to use a current buffer ( NMOS transistor M3 ). Current buffer would be a device that gives you the same current but a much higher output resistance.

• A common gate stage is a current buffer ( cascoded transistor )

Biasing of NMOS transistor M3 could be found by “sweep” of V1= VG3 and at the same time observing ID1 to reach ID2=ID1=10uA.

• The “sweep” value  of V1=VG3 to reach ID2=ID1=10uA is V1=VG3=2.441V which is in line with a following hand calculation:
• Ideally M2 drain voltage should be VGS1 ( so M1 and M2 could be exactly the same and Id1 = Id2 = I0 ) and in reality  M2 drain voltage is
• VG3 - VGS3 => ideally VGS1 = VG3 - VGS3
• => VG3 = VGS1 + VGS3

From simulation: VG3 =  VGS1(1.094V) + VGS3(1.337V) = 2.441V

Finally we achieved a much better stability of  IDS1 in relation to variation of VDD:

• For a V0=Vout change from 1.18V to 3.6V, IDS1 change is from 9.99uA to 10uA:
• Using cascoded transistor M3, we increased output resistance hence better result of the stable ID2=ID3=10uA with a variation of V0=Vout

Note*: The simulation shows that for this topology schematic developed so far,  V0=Vout minimum is around 1.18V which is high when we consider that alim. voltage
VDD=3.3V

As a quick hand calculation of the new increased output resistance, it can be proven that the output resistance of a common source with degeneration is:

As a conclusion, since gm3*rds3*Rs >> Rs+rds3 a reasonable assumption is that output resistance in cascoded case is  gm3*rds3*rds2:

=> for a change of a delta Vout =>IDS1 changes to IDS1 + delta VDS1/(gm3*rds3*rds2)

• This is much less of IDS1 change comparing to the “non-cascode” original case

To get biasing VG3 = VGS1 + VGS3 we will add one more cascoded NMOS transistor M4 ( diode connected) at the branch of M1,   and the size of M4 should be the
same as the size of M3:

And now let’s get even more ambitious: here is now a calculation of a minimum voltage Vout so both ( simple and cascode ) current mirror to be operational

• cascode  minimum voltage is much higher than one in simple current mirror

For a simple ( non cascoded ) current mirror Vout must be always greater than VDsat of M2 ( based on ID1=10uA ):

And for the cascoded case:

A minimum Vout for the current mirror to be operational:

Vout - VS4 > VG4 -VS4 -Vth

=> Vout  > VG4 -Vth

VG4 = VGS1 +VGS3

=> Vout  > VGS1 +VGS3  -Vth

=> Vout  > ( VGS1 -Vth) +( VGS3 -Vth )  +Vth

=> Vout > VDS1(saturation ) + VDS3(saturation ) + Vth

As a conclusion, by populating the Vout minimum expression with the simulation results and under assumption that Vth is approx. 760mV we are expecting for
the current topology/schematic  Vout minimum is :

Vout > 388mV + 406mV + 760mV = 1.556V

Since our alim. VDD=3.3V and so far for the current topology/schematic Vout min is approx. 1.556V the conclusion is: we don't have that much of a “headroom”.

=> So, what we would really like is  a solution with a minimum possible value for the Vout min.

• What is the minimum Vout for the current mirror to be operational  ?

A friendly reminder: A minimum Vout for the current mirror to be operational is driven by a minimal VG3 since:

Vout  > VG3 - Vth

What should it be a bias voltage of M4 (VG3 = ?), but it’s minimum value to remove any inefficiency ?

To achieve minimum VG3, a necessary condition is that M2 and M3 are in saturation ( VDS2 = VDS2(saturation)  and VDS3 = VDS3(saturation) )

=> VG3 = VGS3 ( when I0 current is flowing through M3,M2 ) + VDS2(saturation, again when I0 current is flowing through M3,M2  )

• VG3 = VGS3 +VDS2 sat

Also in the case of the minimum VG3,  the minimum voltage Vout = VDS2( saturation, with I0 flowing through M2,M3) + VDS3(  saturation, with Io=10uA flowing through M2,M3).

=> according to our simulations so far we could expect for minimum VG3:

Vout > 388mV + 406mV meaning: Vout min = approx. 800mv

Our bias task related to M3, is to find what is ( and how to implement it ) VG3 = VGS3 ( when Io=10uA current is flowing through M2,M3 ) + VDS2(saturation, again when Io
current is flowing through M2,M3  ).

=> VG3 = VGS3 + VDS2(saturation)

VDS3(saturation) > VGS3 -Vth

since VGS3 -Vth = VG3 -VS3 -Vth and  VS3 = VDS2(saturation)

=> VGS3 -Vth = VG3 - VDS2(saturation) -Vth

=>   VDS3(saturation) > VG3 - VDS2(saturation) -Vth

=> VG3 > VDS3(saturation)  + VDS2(saturation) + Vth

=> VG3 minimum  = VDS3(saturation) + Vth +  VDS2(saturation)

Since:

Under assumption that sizes M3=M2 meaning both has the same W/L and Id3=Id2=10uA

=> VG3 minimum =  Vth + 2* VDS

=>VG3 = Vth + 2*2I0/(*Cox*W/L)

=>VG3 = Vth + 2I0/(*Cox*(W/4)/L)

What is 2I0/(*Cox*(W/4)/L) ?

e.g. one way to look at this: 2I0/(*Cox*(W/4)/L) is a VDS( or Vov: “overdrive voltage”) of a transistor in saturation that has Id=I0 current, and has dimensions (W/4)/L .

In general, when faced with a need to generate a voltage Vth + something ( e.g.Vov ) we can use this structure, which is a transistor connected as a diode and always in guaranteed saturation:.

• VDS = VGS and  VDS saturation > VGS -Vth =>  always is true that VGS > VGS - Vth =>  the transistor is always in saturation )

=>

Also “sweeping” Vout=V0 shows that Vout minimum is around 0.8V in line with our hand calculation:

But there is a problem here: VDS1 (M1 transistor) and VDS2 (M2 transistor but minimum VDS2 to keep M2 in saturation  ) are not the same and Id3=Id2 of approx 9.57uA
will not be exactly Id1=10uA.

This is because of the influence of channel length modulation, in other words there will always a systematic error. So this schematic is good but it would be better if VDS1 = VDS2.

VDS2 is VDsat and VDS1 is VGS1 ( and  VGS1 = VDsat + Vth )

So again the problem is how to implement a circuit to give us a perfect VGS1 to produce exactly VDS1 = VDS2 =>   Id3=Id2 equal exactly 10uA.

Let’s say we can find a perfect VGS1 ( to produce exactly VDS1 = VDS2 =>   Id3=Id2 equal exactly 10uA ) using a circuit like this:

An equivalent circuit exists if we have a current source Io and transistor M1 how do we insure that Id1=10uA. We could take a voltage generator VG1 and adjust VGS1
to be exactly the value so  Id1=10uA:

To get exact value of VG1=VGS1 to have ID1=Io=10uA we could use a circuit like this:

And finally let’s use the same principle in our original circuit:



As a very final step we would just add one more current mirror branch:

Here is the result of DC simulation of our TSMC 22nm circuit:

• And this is called “High Swing Cascode” current mirror

Or a little bit different rearranged the same schematic:

Also we could use the same circuit with half a current value of the current referance(s): 5uA and burn less power :

 © 2011-2020 ASIC Stoic. All rights reserved.

Cadence Virtuoso CMOS Analog Design Basics in TSMC 22nm: “Constant gm bias circuit” with start-up and reduced sensitivity to changes in VDD

Cadence Virtuoso CMOS Analog Design Basics in  TSMC 22nm: “Constant gm bias circuit” with start-up  and reduced sensitivity to changes in VDD

In the previous blog post: “Cadence Virtuoso CMOS Analog Design Basics: a schematic for generating a reference current ( e.g. 10uA ) in a new techno ( e.g. TSMC 22nm )
using “Constant gm bias circuit”  with start-up” I didn’t pay attention to what is my circuit sensibility to changes in VDD .

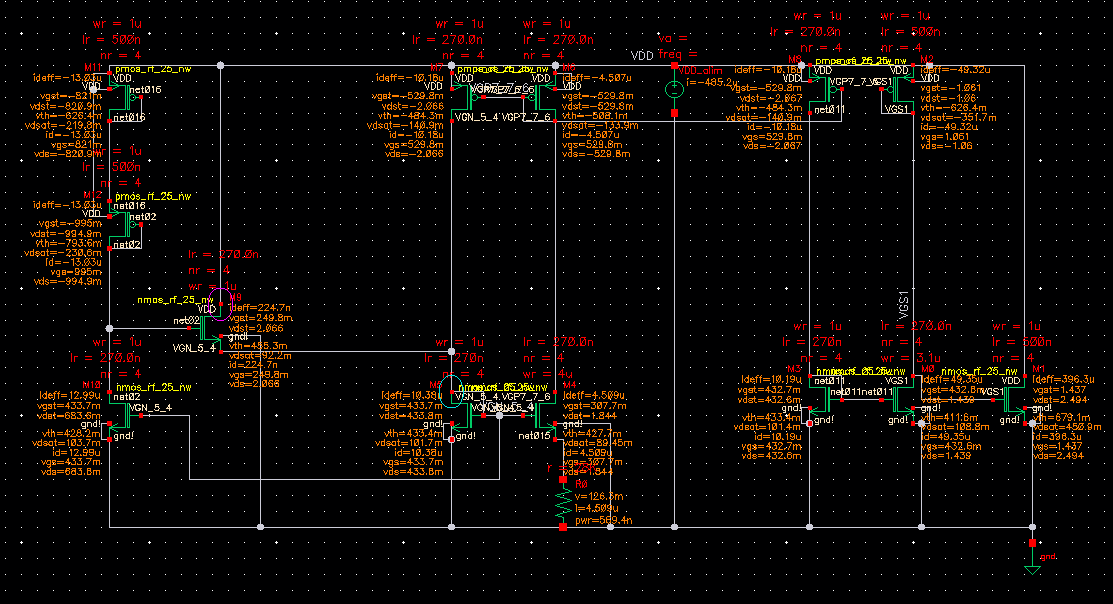

A friendly reminder of the previous blog spot schematic:

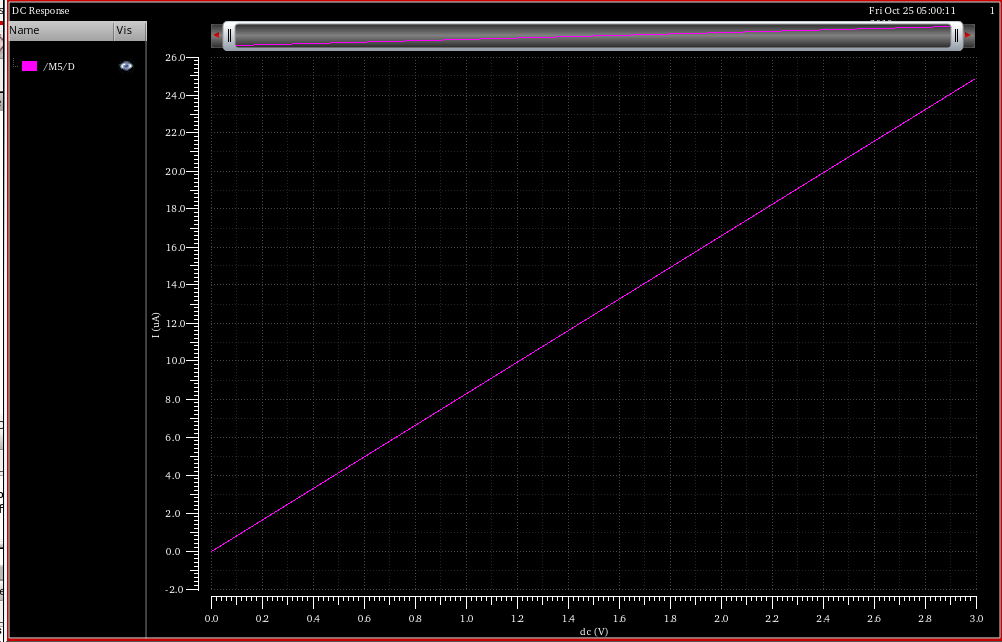

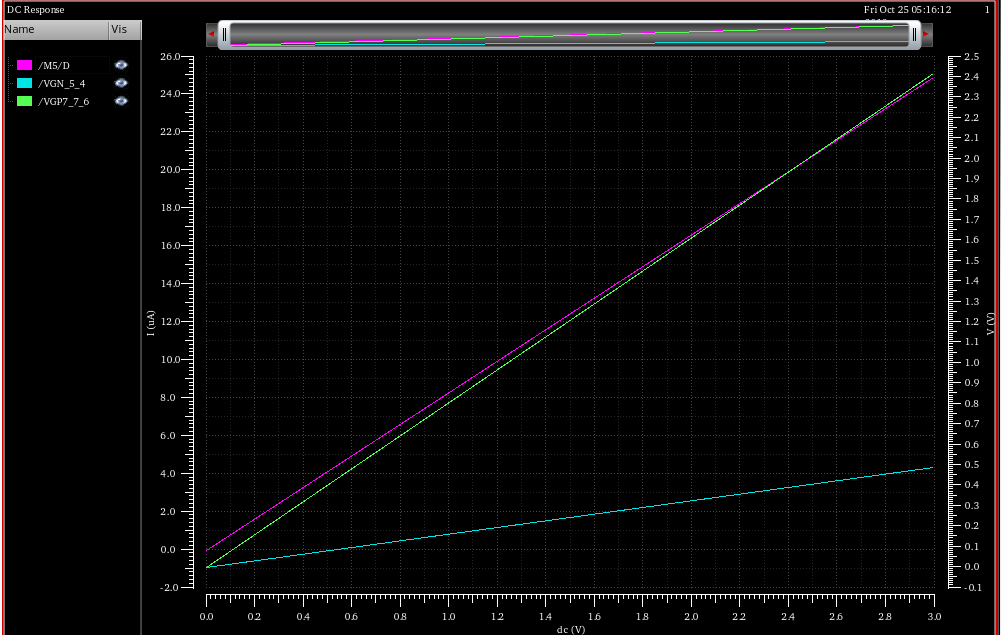

A problem: the previous blog spot schematic sensibility to changes in VDD:

One solution to the problem of increased sensitivity of our “Constant gm bias circuit” to changes in VDD is very well described in James Baker book “CMOS

Circuit Design, Layout, and Simulation” and his online available lectures.

The cause of the problem of the  large sensitivity to changes in VDD are low output resistance on NMOS transistors M4 and M5 because of “short channel”
technology TSMC 22nm.

As a consequence of the low output resistance there increased sensibility of M4 and M5 current to changes in VDS4 and VDS5 caused by VDD changes.

As a conclusion  we need to reduce the variations in the drain-to-source

voltages  of the NMOS  devices M4 and M5  with changes in VDD and to do this we will:

• Disconnect gate drain connection of PMOS transistor M7
• Add opamp   in negative feedback ( like it is almost always used ) that will  keep drain-to-source voltages ( of the NMOS devices M4 and M5 ) always the
• same independent of VDD changes
• The  idea is  to use the  amplifier to compare the drain voltage of M4 with the drain voltage of M5 and regulate them  to be equal:

Now the question is where to connect  “+” and where to connect “-” input of opamp ?

By the way It can be proven that Rout of M5 > Rout of M4 .

Here is how the negative feedback operates illustrated on an  example:

• when gate of M6/M7 goes down ( e.g. because of  because of a VDD change .. ), increasing currents ID6 = ID4 and ID7 = ID5 ,
• => this will cause that VDS5 rise more than VDS4 and finally that this rise of VDS5 more than VDS4
• => this will cause  that gate voltage of M6/M7 goes up ( and compensate that it went down in the first place ).

=> “+” input of op-amp should be connected to the drain of NMOS transistor M5.

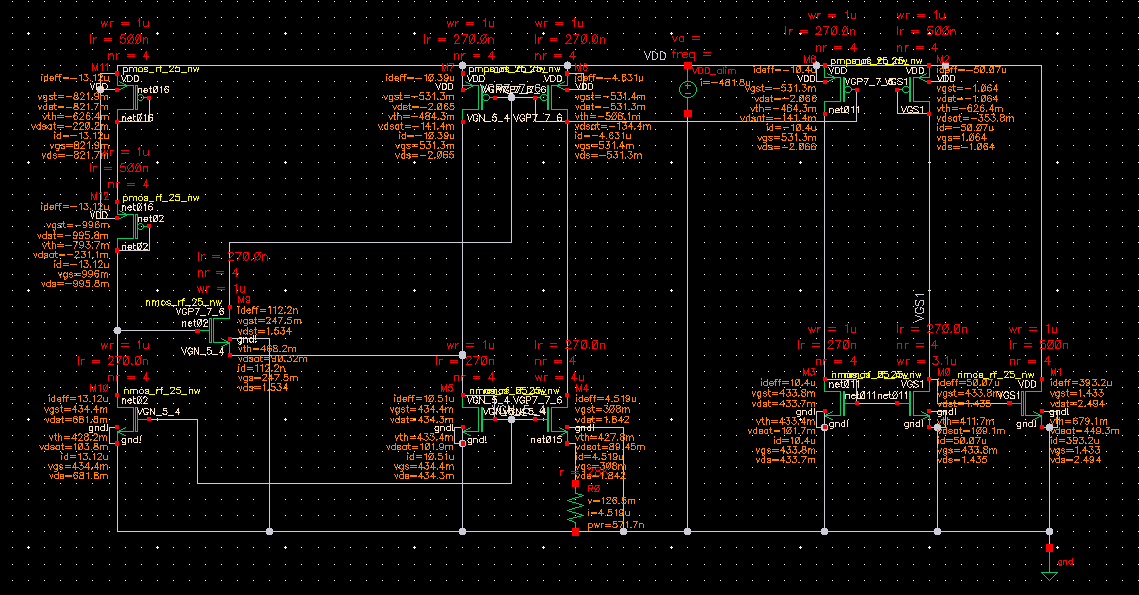

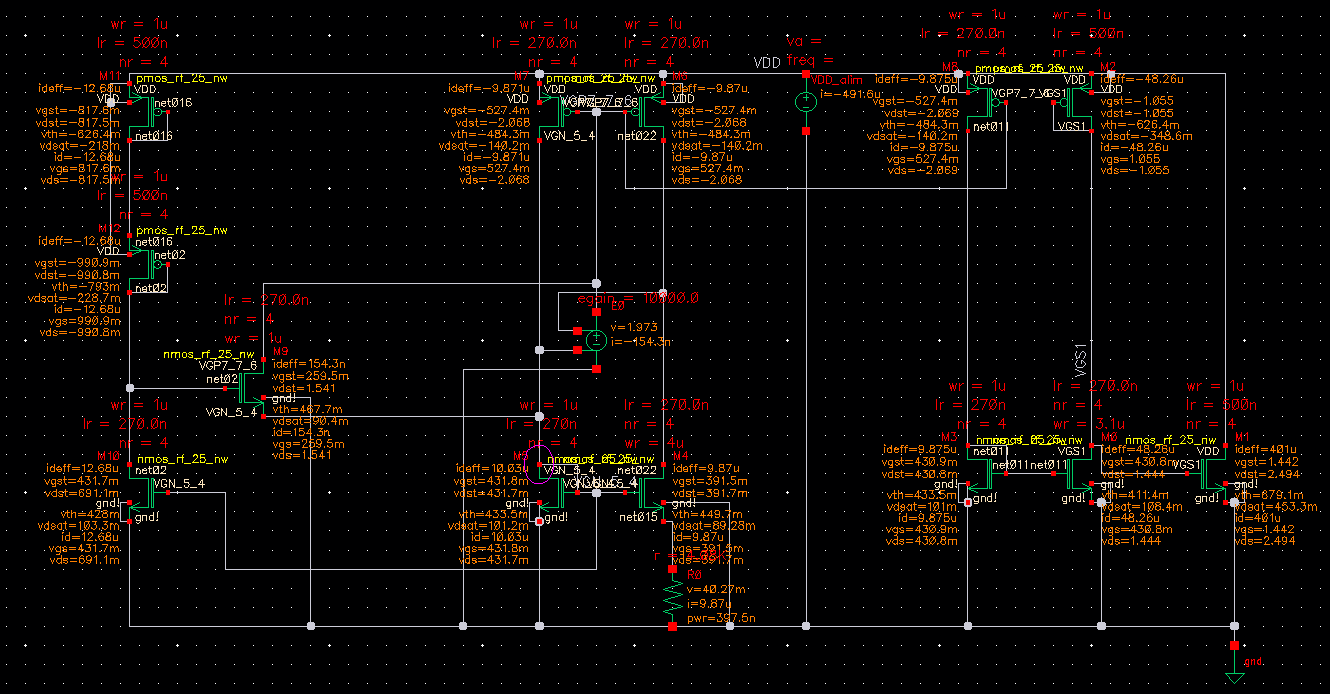

Before I introduce op-amp to the schematic let’s go through an intermediate step and introduce Voltage Control Voltage Source ( vcvs ) from Cadence Virtuoso library
analogLib as a good approximation of  opamp especially if we setup in vcvs a Voltage Gain parameter ( A ) to some high value ( e.g. A = 10000 or 20*log 10000 = 80db )

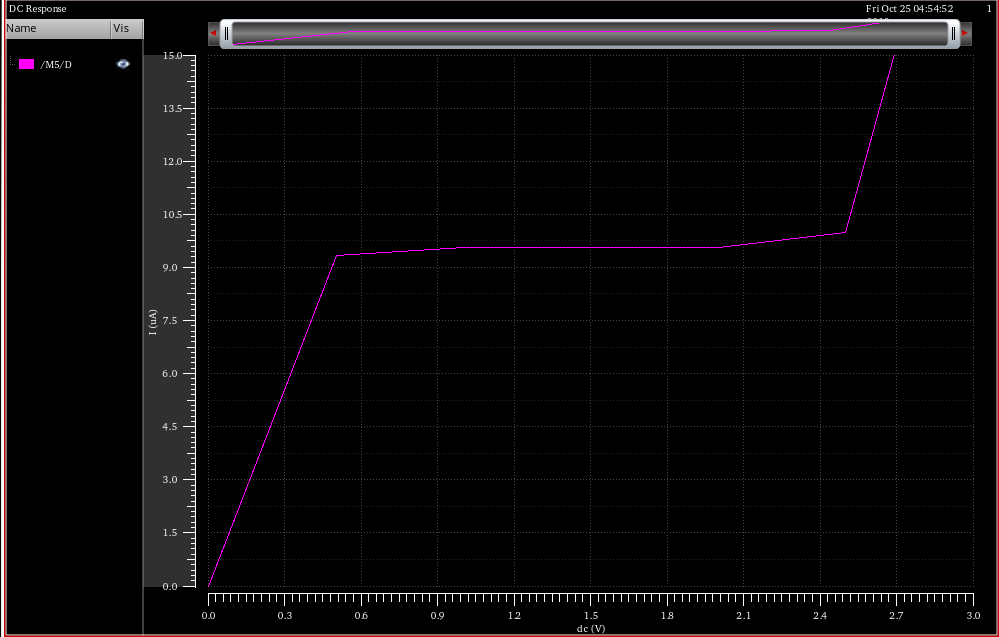

Here we can see an improvement in much less sensitivity of Iref = 10uA on VDD changes.

Note*: Just a friendly reminder so far we did experiments assuming Voltage Gain = 10 000 ( 80 dB ) but in reality a single stage simple op amp that we are going to use
here will have more Voltage Gain = 50 ( 20*log (50) approx. 34dB.

• To get to A > 100dB we would need to add a second “gain” stage ( additional  too.

Cadence Virtuoso CMOS Analog Design Basics: an schematic for generating a reference current ( e.g. 10uA ) in a new techno ( e.g. TSMC 22nm ) using “Constant gm bias circuit” with start-up

Cadence Virtuoso CMOS Analog Design Basics: an schematic for generating a reference current ( e.g. 10uA ) in a new techno ( e.g. TSMC 22nm ) using “Constant gm bias circuit”  with start-up

In the previous blog post: “Cadence Virtuoso CMOS Analog Design Basics: an example of adding
a schematic for generating a reference current ( e.g. 10uA ) in a new techno ( e.g. TSMC 22nm )”
I used self-biased circuit but without adding start-up circuit.

This is where we left off in the previous blog post and now we are going to add a startup circuit:

In any self-biased  circuit there are two  possible operating points:  wanted one
( in our case the self-biased  circuit will generate 10uA current) and the  unwanted one
where no current flows in the  circuit.

Note*: Equations presented in the previous blog entry gave us a hint about the existence of
these two possible operating points in this circuit:

And after division of both sides of the equation with Iref under assumption that Iref is not equal to 0:

But equation:

is also true when Iref=0 meaning that the circuit will have two possible states ( stable points )
after power up and one of them is an undesirable state where Iref=0.

In our schematic when Iref=0 (an undesired state  of the circuit) NMOS transistors M4 and M5 are not
conducting so it is safe to say that gates voltage of NMOS transistors M4 and M5 are VG4=VG5 is
approx. 0V.

On the other hand again Iref=0 (an undesired state  of the circuit) because of the effect of
forward biased diode of transistor M6,  it is also safe to say that gate voltage of PMOS transistors
M7 and M6,VG6=VG7 is approx. VDD=2.5V.

• So to be sure that our self-biased circuit never get “stuck” into undesirable state resulting in

Iref=0 we need to add a circuit ( a “start-up” circuit ) that will put/”leak” some current into the

drain of NMOS transistor M5 in the case that VG4=VG5 approx. 0V and  VG6=VG7 approx.

VDD=2.5V a consequence of undesirable but stable state anyway of the self-biased circuit

with Iref=0.

• We also need that “start-up” circuit  to stop “leaking” the current into the drain of NMOS

transistor M5 when mission of “start-up” is accomplished in other words when our

self-biased circuit move from a stable state where Iref=0 to other stable state where

Iref=10uA.

Exact way of thinking that led to schematic of the start-up circuit is very well explained by
prof. Jacob Baker in his class lectures available online, but here I would start with a simple topology
that use an unreasonable big resistor( for example 100M ) and two transistors:

•  NMOS M9 used as switch ( a hint: small L ) and provider of “leakage” current to drain of

NMOS transistor M5 when there is the stable state of self-bias circuit resulting in  Iref=0 and

cutting the current “leakage” when there is the stable state of self-bias circuit

resulting in Iref=10uA.

• NMOS transistor M10 is biasing to ON transistor M9 when there is the stable state of

self-bias circuit resulting in  Iref=0 and M10 is biassing to OFF transistor M9 when there is

the stable state of self-bias circuit resulting in Iref=10uA.

• NMOS transistor M10 shares the same VGS with NMOS transistor M5 in

a current mirror configuration and  M10 and M5 are the same size W/L.

A transient simulation shows that transistor M9 is providing a lot of current at the beginning of
simulation when  ID5=Iref=0 and when the circuit settles in the desired stable state when
ID5=Iref=10uA, transistor M9 is “leaking” into drain of M5 only approx. 0.8uA:



Note*: in order to get the transient simulation as presented in the waveform above it is necessary to
setup initial conditions on two nets in Cadence Virtuoso Spectre like this:

ADE->Simulation->Convergence Aids->Initial Condition

The initial condition  of gate voltage of NMOS transistors M4 and M5 is VG4=VG5 =0V and the
second initial condition is on gate voltage of NMOS transistors M6 and M7 and it is
VG6=VG7 approx. VDD=2.5V.

It is not practical to have unreasonable big resistor in a circuit, so in a final schematic resistor
R=100M is replaced with two diode connected transistors M11 and M12 sized with smallest
W=1um and largest L=500um:

  Or another better version of the same circuit:
